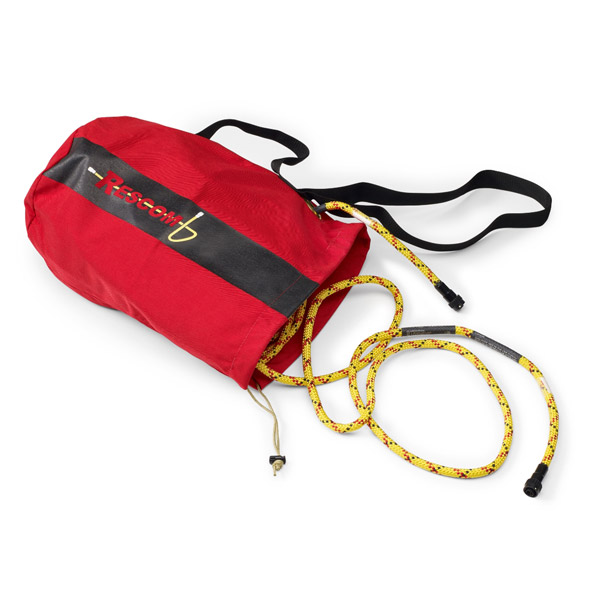

Rescom Rope Bag
This minimalist rope bag provides a durable and effective way to store your Combined Safety/Communication™ Rope, which is used in the Rescom Elite® – Rescue Communication System. The user can leave one end of the rope hanging from the grommet, allowing easier connectivity and limited rope deployment.
These rope bags are super tough and durable and are constructed of a coated nylon fabric. Rope bags greatly reduce the wear and tear on ropes as only a limited length of the rope is deployed depending on the length required in the application. The reflective band on the bag is designed to increase visibility in dark environments. These “stuff-bags” prevent the rope from tangling up since it is pushed inside, using the “first-in, last-out” principle, instead of being wrapped in a coil.
Applications:
- Search & Rescue (SAR)
- Mining
- Training
- Public Utilities
Features:
- Durable: Made with Dupont “Cordura” Nylon, providing strength, durability and resilience (Meets government Specification VT-295)
- Heavy-Duty Grommet: Brass Grommet on opening prevents wear and tear of the bag (Meets government specifications; MIL-G_16491F and MS-20230)
- Capacity: Small bag holds up to 100’ and Medium bag holds up to 300’ of Rope
- Shoulder Strap & Handle: Made with heavy-duty material (Meets U.S. Coast Guard Regulations for P.F.D.s)
- Breaking Strength (Strap): >1000 lbs.
- Water-repellent: Proprietary coating makes bag water-repellent
- Resistance: Rot and Mildew Resistant
- Rope Log: Water resistant Rope Log document pouch included
- Easy-Close: Drawstring with Barrel-Lock closure
- Sizes: Available in Two Sizes
- Small - Holds up to 100' of Rope
- Medium - Holds up to 300' of Rope
Rescom Rope Bag
| Intrinsically Safe |
Yes |
| Water-Resistant |
Connectors: ¼” Military-style twist bayonet Waterproof to 10m (35ft), Watertight Up to 1m (3.3ft) |
| Communication Range |
Total from DMI-E to V-Mic™ Up to 4.8km (3miles) |
| Operating Temperature |
-50° to +60°C (-45.5 to 140°F) |
| Certifications |
- OSHA: Meets all OSHA safety standards for confined space entry.
- CSA and UL: Approved as per standard #C22.2 No.157-92 and UL #913 Seventh Edition (CSA File No. 224590-1669565)
- Class I, Div. 1 Groups A, B, C, & D
- Class II, Div. 1 Groups E, F, G
- Class III, Div. 1 Gaseous Mines
- MSHA: Tested for Intrinsic Safety in Methane-Air Mixtures Only when used with Rescom® Modular™.
(Approval Number: 23-A100005-0)
- IECEX: Approved when used with Rescom® Elite™ or Rescom® Modular™
- ATEX: Approved when used with Rescom® Elite™ or Rescom® Modular™
- ISO 9001:2015: All SED products are ISO 9001:2015 certified
- Shoulder Strap meets U.S. Coast Guard Regulations for P.F.D.’s
- The grommet meets Government specifications, MIL-G-16491F and MS-20230
- Nylon meets government specification VT-295
|
| Height |
Small bag-20” and Medium bag-26” |
| Diameter |
13 3/8” (340mm) |
| Grommet Placement |
Located above the top of the shoulder strap attachment point |
| Material |
Nylon Dupont “Cordura” |
| Resistance |
Water-repellent, Rot & Mildew resistant |
| Shoulder-strap width |
2.0” (50.8mm) |
| Shoulder-strap breaking strength |
>1000 lbs. |
| Breaking Strength, Bag |
1600lbs. |
| Capacity |
Small bag holds up to 100’ and Medium bag holds up to 300’ of cable |
Rescom Rope Bag
| 330002-S |
(Small): Holds up to 100’ of Rope |
| 330002-M |
(Medium): Holds up to 300’ of Rope |
