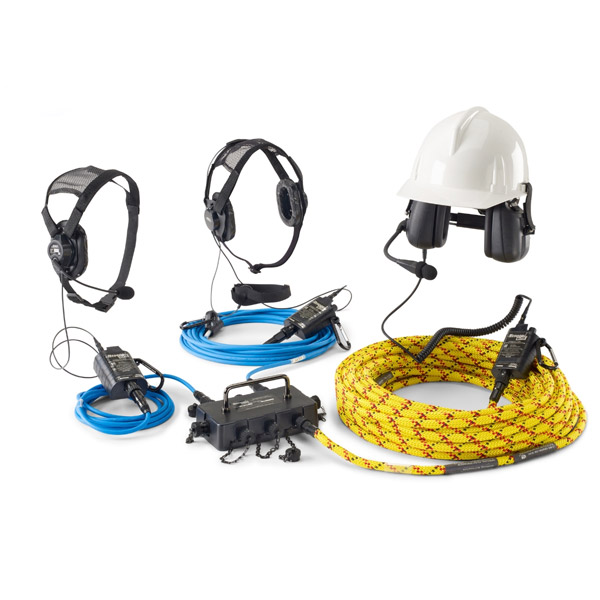

Rescom Elite® – Intrinsically Safe Rescue Communication System
Rescom Elite® is an instantly deployable, Intrinsically Safe, hardline system designed to provide clear, effective, and continuous communication for a confined space or a high-angle rescue scenario.
With a new & sleek plastic housing and a no-nonsense design, this New Generation Rescue Communication System is manufactured by SED to replace the legendary Rescom® Modular™. These systems typically consist of:
- A Primary Interface (DMI) with a Headset for the Attendant
- Two or more Dependent Interface units (DSI) with Headsets for Entrants
- Combined Safety/Communication Ropes™ and/or DuraCORE™ Cables
- A Junction Box
The belt-mounted Primary Interface (DMI) provides centralized power for all other Interface Units (DSI). The entire system operates on low voltage and can be powered by 3 AA batteries, which are housed in the DMI unit. The Combined Safety/Communication Rope™ is a unique SED design and is used as a primary or secondary lifeline in rescue scenarios, setting the standard for communication lifelines for over 37 years.
What is Intrinsically Safe?
Intrinsically Safe means that the system is incapable of causing an explosion or being a source of ignition in the presence of potentially explosive or combustible materials and gases.
In other words, the equipment and wiring are incapable of releasing sufficient electrical or thermal energy under normal or abnormal conditions to cause the ignition of a specific hazardous atmospheric mixture in its most easily ignited concentration. OSHA has many reports of fires caused by non-intrinsically safe systems.
Preventing fire and explosions is a top priority for all industries around the world!
What sets the Rescom Elite® Communication System apart from other hardline systems on the market
Our 10,000 lb. tensile strength NFPA-rated Combined Safety/Communication Rope™ contains built-in wiring, simplifying line management and thus, reducing the chance of User entanglement while working.
It has been tested to provide communication up to the point of rope failure at over 10,000 lb. load. This rope is ideal for Search and Rescue (SAR) personnel or firefighters. SED’s Combined Safety/Communication Rope™ or Extension Cords provide clear, reliable communication for up to 4.8 km (3 miles) per Headset. Connectors and ropes can also be submerged in water up to 10m (35’).
DuraCORE™ Cable with a SEDFLEX™ jacket, which makes the cables more rugged than average communication cables in the market.
The Rescom Elite® system is a rescue communication system that is designed for high-angle rescue, confined space rescue, and collapse rescue. Other than rescue-type scenarios, it can also be used in the following applications:
Applications:
- Public Utilities – Tunnels, Water, Vaults, Boilers, Furnaces
- Chemical Processing Plants – Storage Vessels, Pipes, Process Reactors, Tanks, Vats
- Chemical Distillation Plants – Oxidation Tanks, Chemical Vats, Tanks
- Telecommunications Providers – Underground Tunnels, Communication Towers, Crane
- Refineries – Towers, Tanks, Pipelines, Boilers, Furnaces
- Water Reclamation – Wastewater Management, Tunnels, Pipes, Sewers, Pits, Tanks, Wells
- Breweries – Vats & Fermentation Vessels
- Environmental Services – Hazmat, Sewers, Tunnels, Manholes, Ditches, Septic & Holding Tanks
- Manufacturing – Smokestacks, Tunnels, Holding Tanks
- Nuclear – Reactor Vaults, Inspection
- Fire Departments/Search & Rescue (SAR) – High Angle, Extrication, Confined Space Rescue
- Training Facilities – Rescue, High Angle Rappelling
- Agricultural – Silos, Mills, Grain Elevators
- Shipping – Ship’s Holds, Compartments
- Mining – Rescue, Open Pits
- Aircraft – Wing Fuel Tanks, Aircraft Sections, Riveting De-Icing
- Maintenance – Sandblasting, Water Blasting, Welding, Clean-Up
Features:
- Full Duplex Communication
- Intrinsically Safe
- Simple and intuitive hardware
- 4.8km (3 miles) range per User
- Connects up to 10 Users
- Personal Volume Control
- NFPA rated Communication Rope with 10,000lb tensile strength
- Recognized & certified by major industry Certification Agencies
- Low Battery Indicator for the entire team
- Immune to Radio Frequency (RF) Interference
- Operates on low voltage, i.e., less than 5V DC
- A variety of Headsets to suit various communication needs
- NFPA approved Combined Safety/Communication Rope™*
- DuraCORE™ Cable with SEDFLEX™ Jacket*
- 5 Year Limited Warranty
- 1 Year Warranty on the connector integrity of the Combined Safety/Communication Rope™
*Varies by particular requirements or Kits
Each kit consists of the following:
- Headsets
- A primary Interface (DMI)
- Dependent Interface(s) (DSI)
- Combined Safety/Communication Rope(s)™ and/or DuraCORE™ Communication Cable(s)

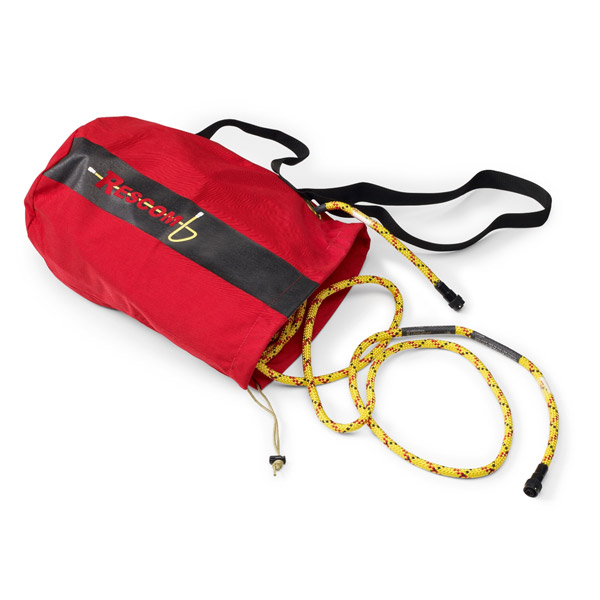

- Rope Bags
- Equipment Case and a Junction Box (available with 2-8 connectors, as per User requirement)
Rescom Elite® – Intrinsically Safe Rescue Communication System
| Max. Headset Connections |
10 |
| Full Duplex Communication (2-way) |
Yes |
| VOX (Voice Activated) |
No |
| Push-To-Talk (PTT) |
Optional |
| Push-To-Mute (PTM) |
Optional |
| DSP (Digital Signal Processor) |
No |
| System Type |
Wired |
| Radio Compatible |
No |
| AM/FM Radio |
No |
| Intercom Feature |
Yes |
| Intrinsically Safe |
Yes |
| Redundant Power Supply |
No |
| Hearing Aid Compatibility |
Yes |
| RFI Immune (Radio Frequency Interference) |
Yes |
| Personal Volume Control |
On belt-mounted Interface |
| Water-Resistant |
Yes |
| Transmit Power |
N/A |
| Communication Range |
Up to 4.8km (3 miles) per Headset |
| Power Supply Type |
Centralized power – 3 alkaline AA batteries |
| Battery Life |
34-210 hrs. for 10-2 Users respectively |
| Low battery Indicator |
Audible Indicator |
| Operating Temperature |
-40°C to 70°C |
| Limited Warranty |
5 Years (1 Yr for Combined communication/safety rope™) |
Certifications | - ISO 9001:2015 registered/ certified
- The Rescom® Combined Safety/Communication rope™ is NFPA certified and is compliant with Class-7216 82 (File No.:1548278-224590)
- Rescom® Elite™ system meets all OSHA safety standards for confined space entry
- CSA and UL approved as per standard #C22.2 No.157-92 and UL #913 Seventh Edition (CSA File No. 224590-1669565)
- Class I, Div. 1 Groups A, B, C, & D
- Class II, Div. 1Groups E, F, G
- Class III Div. 1, Gaseous Mines - IECEX
- ATEX
|
Rescom Elite® – Intrinsically Safe Rescue Communication System
Rescom Elite® Kits with DuraCORE™ Communication Cable
|
|
Cable
|
DMI
|
DSI
|
198920
|
198935
|
Junction Box
|
Equipment Case
|
| REK2MC-030 |
2 Man |
100' x 1
|
1
|
1
|
1
|
1
|
-
|
Medium
|
| REK2MC-091 |
2 Man |
300' x 1
|
1
|
1
|
1
|
1
|
-
|
Medium
|
| REK3MC-030 |
3 Man |
100' x 2 + 50' x 1
|
1
|
2
|
1
|
2
|
4 port
|
Medium
|
| REK3MC-091 |
3 Man |
300' x 2 + 50' x 1
|
1
|
2
|
1
|
2
|
4 port
|
Medium
|
| REK5MC-030 |
5 Man |
100' x 4 + 50' x 1
|
1
|
4
|
1
|
4
|
6 port
|
Medium
|
| REK5MC-091 |
5 Man |
300' x 4 + 50' x 1
|
1
|
4
|
1
|
4
|
6 port
|
Medium
|
| REK7MC-030 |
7 Man |
100' x 6 + 50' x 1
|
1
|
6
|
1
|
6
|
8 port
|
Large
|
| REK7MC-091 |
7 Man |
300' x 6 + 50' x 1
|
1
|
6
|
1
|
6
|
8 port
|
Large
|
RESCOM ELITE KITS, RESCOM COMBINED SAFETY/COMMUNICATION ROPE
|
|
Rope |
Cable
|
DMI
|
DSI
|
198920
|
198935
|
Junction Box
|
Rope Case |
Equipment Case
|
| REK2MR-030 |
2 Man |
100' x 1
| 50' x 1 |
1
|
1
|
1
|
1
|
-
|
1 x Small
|
Medium
|
| REK2MR-091 |
2 Man |
300' x 1
| 50' x 1 |
1
|
1
|
1
|
1
|
-
|
1 x Medium
|
Medium
|
| REK3MR-030 |
3 Man |
100' x 2
| 50' x 1 |
1
|
2
|
1
|
2
|
4 port
|
2 x Small
|
Medium
|
| REK3MR-091 |
3 Man |
300' x 2
| 50' x 1 |
1
|
2
|
1
|
2
|
4 port
|
2 x Medium |
Medium
|
| REK5MR-030 |
5 Man |
100' x 4
| 50' x 1 |
1
|
4
|
1
|
4
|
6 port
|
4 x Small |
Medium
|
| REK5MR-091 |
5 Man |
300' x 4
| 50' x 1 |
1
|
4
|
1
|
4
|
6 port
|
4 x Medium |
Medium
|
| REK7MR-030 |
7 Man |
100' x 6
| 50' x 1 |
1
|
6
|
1
|
6
|
8 port
|
6 x Small
|
Large
|
| REK7MR-091 |
7 Man |
300' x 6
| 50' x 1 |
1
|
6
|
1
|
6
|
8 port
|
6 x Medium |
Large
|
