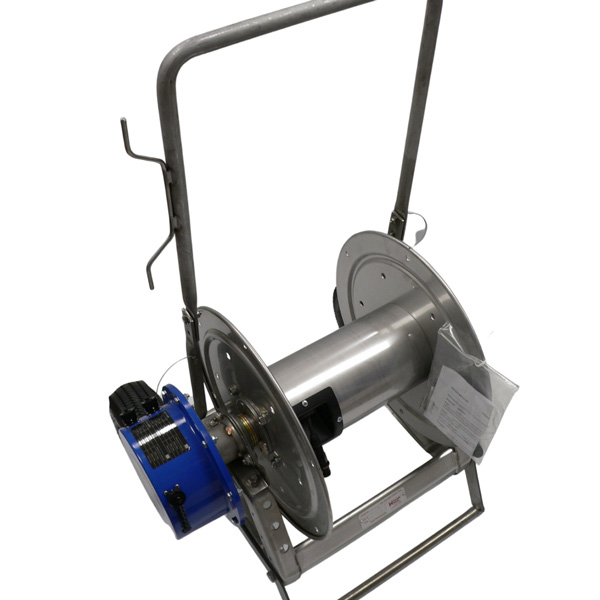

Portable Cable/Rope Reel
This Portable Cable/Rope Reel is designed to ease cable or rope management with the Rescom Elite® and Rescom® Modular™ systems. The sturdy pneumatic tires make deployment easy on uneven grounds and in rough conditions. The cable reel has built-in connectors which allow up to 3 Users to connect with the integrated Junction Box and can be easily expanded up to 10 Users using external JBI Series Junction Boxes.
T-connectors can be added to streamline the system for multiple personnel entries (see images for a connection diagram). This allows any User to disconnect without disrupting communications with the rest of the team. The Belt-Cable anchors allow for tangle-free & tug-free operation by securing the cable to workers’ harnesses or belts.
It is available in two sizes:
- RCC-03/450
- Rope – Up to 150m (500 ft) of Combined Safety/Communication™ Rope
- Cable – Up to 450m (1500 ft) of Duracore™ or MSHA-approved Communication Cable
- RCC-04/900
- Rope – Up to 335m (1100 ft) of Combined Safety/Communication™ Rope
- Cable – Up to 900m (3000 ft) of Duracore™ or MSHA-approved Communication Cable
Applications:
- Search & Rescue (SAR)
- Industrial
- Nuclear
- Construction
- Warehouse
- Manufacturing
- Shipping
- Railways
- Aviation
- Refineries
- Maintenance
- Training
- Public Utilitlies
- Management
Features:
- Intrinsically Safe When used with Rescom Elite® and Rescom® Modular™ system
- Simplified Deployment: Built-in junction box eliminates need for additional Junction Box
- Simplifies Cable/Rope Storage: Prevents tangling of wire/rope bundle
- Compact Storage: Folding handlebars reduce overall reel height
- Pneumatic Tires: Ideal for uneven grounds and rough conditions
- Easy-Winding: Manual crank operation
- Easy-Twist™ Connectors: Military-style bayonet Connector can be easily disconnected while wearing gloves
- Heavy-Duty: Stainless steel construction, makes the reel rugged & durable
- Certifications: MSHA, OSHA, IECEx, ATEX, CSA, UL and ISO 9001:2015
- 1 Year Limited Warranty
Portable Cable/Rope Reel
| Color |
Blue |
| Number of Connectors |
3 |
| Weight |
20.41 kg |
| Dimensions |
24" x 32" x 32" |
| Certifications |
- OSHA: Meets all OSHA safety standards for confined space entry.
- CSA and UL: Approved as per standard #C22.2 No.157-92 and UL #913 Seventh Edition (CSA File No. 224590-1669565)
- Class I, Div. 1 Groups A, B, C, & D
- Class II, Div. 1 Groups E, F, G
- Class III, Div. 1 Gaseous Mines
- MSHA: Tested for Intrinsic Safety in Methane-Air Mixtures Only when used with Rescom® Modular™.
(Approval Number: 23-A100005-0)
- IECEX: Approved when used with Rescom® Elite™ or Rescom® Modular™
- ATEX: Approved when used with Rescom® Elite™ or Rescom® Modular™
- ISO 9001:2015: All SED products are ISO 9001:2015 certified
|
Portable Cable/Rope Reel
RCC-03/450
|
Rescom Elite Rope/Cable Reel with Commutator - Capacity, Rope: 500ft or
Capacity, Cable: 1500ft (Capacities Recommended by Manufacturer)
|
| RCC-04/900 |
Rescom Elite Rope/Cable Reel with Commutator - Capacity, Rope: 1100ft or
Capacity, Cable: 3000ft (Capacities Recommended by Manufacturer) |
