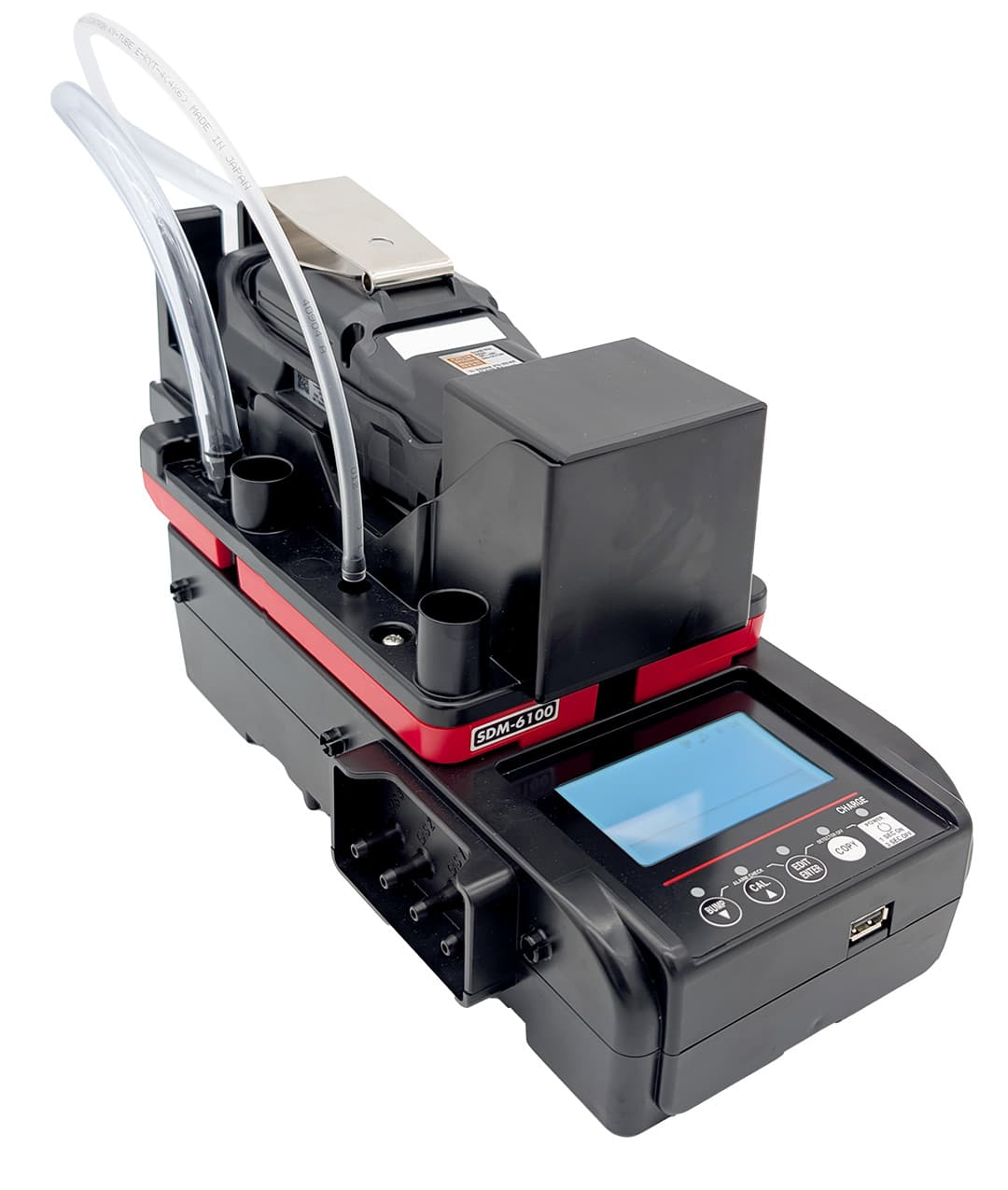

SDM-6100 Calibration Station for RKI GX-6100
The SDM-6100 is a versatile maintenance tool that automates the service of a GX-6100 portable gas monitor. This docking station can be used as a stand alone device for charging, calibrating and bump testing, with all records stored automatically for future upload to a PC via USB flash drive or LAN import (PC software and flash drive included).
The SDM-6100 can also be connected to a PC for automated calibration, bump testing, and archiving of datalog data from GX-6100 instruments. Up to ten SDM-6100 docking stations can be connected simultaneously using USB cables.
The SDM-6100 includes connections for one to three calibration gas cylinders.
Stand Alone Station:
- Charging (Lithium-Ion Battery)
- Calibration
- Bump Test
- 3 Calibration gas ports
- Save Bump Test and Calibration records
- Bump Test and Calibration records copy to USB Jump Drive
PC Controller Software:
- Includes PC software for viewing/archiving bump test and calibration records
- Multiple connected to a PC (10 max)
- Archiving data to network location
- Software controlled data retrieval
- Automatic calibration / bump test option
- Configure GX-6100
Station Includes:
- SDM-6100 calibration station with filter
- AC Adapter
- 10' Exhaust Tubing
- USB Drive
- USB & LAN Cables
SDM-6100 Calibration Station for RKI GX-6100
| Input Power |
Main unit input: 5.0 VDC
Accessory AC adapter input: 100-240 VAC |
| Operating Temperature |
0 to 40 ° C (no sudden fluctuations)
|
| Applicable Instruments |
GX-6100 |
| Memory capacity |
Up to 500 bump tests, calibrations, or alarm
checks
|
Number of Calibration Gas
Cylinders |
Up to three calibration gas cylinders |
| Standard Accessories |
• USB-C cable for instrument connection
• Air Filter
• AC Adapter
• Exhaust tubing
• Flash drive
• USB-A to USB-B cable
• LAN cable |
