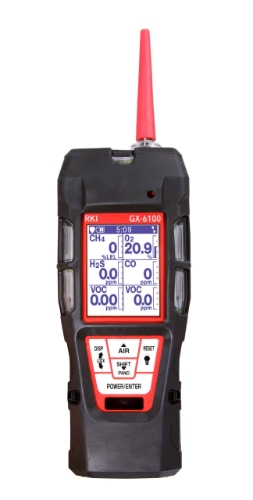

GX-6100 Six Sensor Sample Draw Gas Monitor

GX-6100 Six Sensor Sample Draw Gas Monitor

The GX-6100 is a powerful hand-held instrument capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases which include combustibles, O2, CO, and H2S, the GX-6100 has 2 additional smart channels that accept PID, PPM, IR or super toxic sensors. The updated GX-6100 can measure combustible gases in PPM range and %volume in the same monitor.

Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6100 can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. The GX-6100 with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalized favorites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s. A benzene-specific version is available using a pre-filter tube for detecting low levels of benzene. Four PID sensors are available, 10.0 eV, 10.6 eV (low or high range), and 11.7 eV. Any combination of two PID sensors can be installed. GX-6100 PID sensors are also resistant to humidity.

The GX-6100 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6100 will easily alert users when needed.

6 Operating Modes:

• Normal Mode
• Barhole Mode
• Inert Mode
• Leak Check
• Snap Log Mode
• Benzene Specific

Applications:

• Confined Space Entry
• Hazmat Response Teams
• Arson Investigation
• Remediation Site
• Perimeter Monitoring
• Leak Detection
• Landfill Monitoring
• Winery Tank Entry

Features

• Smallest 6 gas sample draw detector
• New 4-gas sensors with up to 3-year warranty
• 2 Interchangeable smart sensor slots
• TC sensor for %volume measurement of combustibles
• New ppm MOS CH4 and ppm MOS i-C4H10 sensors
• 4 PID options: 10.6 (2 ranges) eV, 10.0 eV, and 11.7 eV lamps
• Supports dual PID sensors
• PID library of over 600 VOCs
• Rapid sharing of emergency alerts via Bluetooth®
• Benzene specific version
• PPM Leak Check mode
• LEL sensor protection mode
• Man-down alarm
• Panic alarm
• Auto display rotation
• Peak-bar display
• LED Light source
• Internal sample pump
• Light weight, small, rugged IP-67 design
• Interchangeable battery packs (Li-ion / alkaline)
• Operates up to 28 hours on Li-ion battery pack, 8 hours operation with alkaline pack
• Field replaceable sensors, batteries, filters and pump
• Intrinsically safe ATEX / IECEx / cCSAus (pending)
