Medium Volume Respirator Dryer
System Includes:
- 6 Stainless Steel Baskets (GS2102)
- Activated carbon air filter (GD1013)
- 8 ft power cord set (GD1510)
- All stainless steel construction
- One year parts and labor warranty

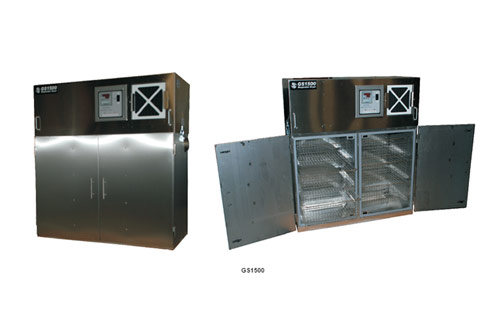

The ideal solution for medium to high-volume mask drying. The GS1500 Respirator Dryer specializes in rapidly drying respirators and other personal safety equipment. An electronically controlled heated airflow ensures proper temperatures are maintained throughout the cycle. Air is filtered via a carbon air filter prior to entering the cabinet. This all stainless steel unit will accommodate 6 GS2102 baskets.
- The safest and fastest method available for drying respirators.
- Temperature and time settings are user adjusted
- Magnetic strip door seal
- Easy to operate
- Holds 48 full-face masks or 96 half-face masks
- Filters incoming air
INSTALLATION
- 8 foot 3 wire power cord on the top right side of the unit
- Air Intake located on the top right front of the unit (Different Than Pictured)
- Air Discharge located on the top right or left side of the cabinet
- Ducting of air is not necessary, but comes complete with 4" adapter port
- Leveling must be adjusted to installation surface
Medium Volume Respirator Dryer
| Power Cord | 8 ft. |
| Plug | NEMA L5-30P 30 Amp Twist-Lock |
| Power Supply | 120 Volts, 50/60 Hz, 23 Amp, 1 phase
Connect To: 30 Amp Breaker |
Capacity Per Cycle
-Full Face Masks
-Half Face Masks
-Baskets |
- 48
- 96
- 6 (20" x 20" x 7" [H]) |
| Air Flow | 1200 CFM (Circulated)
200 CM (Exhausted) |
| Heater Kw | 2000 Watts |
| Height | 46.5" |
| Depth | 24.5" |
| Width | 46.5" |
| Weight | 500 lbs. |
| Cycle Time | 1 - 999 minutes (User Selected) |
| Drying Time | 30 to 90 minutes *
1 hour (typical) |
| Temperature | User Adjustable
140°F (Max) |
| Notes | * Length of drying times depends on type
of equipment, and the drying temperature
selected |
