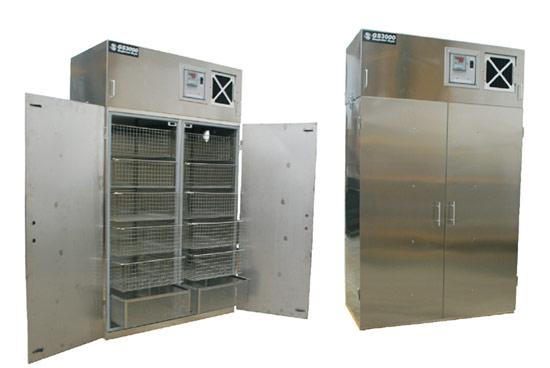

High Volume Stainless Steel Respirator Dryer
SYSTEM INCLUDES
- 12 Stainless Steel Baskets (GS2102)
- Activated carbon air filter (GD1013)
- 8 ft power cord set (GD1510)
- All stainless steel construction
- One year parts and labor warranty
The ideal solution for medium to high-volume mask drying. The GS3000 Respirator Dryer specializes in rapidly drying respirators and other personal safety equipment. An electronically controlled heated airflow ensures proper temperatures are maintained throughout the cycle. Air is filtered via a carbon air filter prior to entering the cabinet. This all stainless steel unit will accommodate 12 GS2102 baskets. The safest and fastest method available for drying respirators.
- Temperature and time settings are user adjusted
- Magnetic strip door seal
- Easy to operate
- Holds 92 full-face masks or 192 half-face masks
- Filters incoming air
INSTALLATION
- 8 foot 3 wire power cord on the top right side of the unit
- Air Intake located on the top right front of the unit (Different Than Pictured)
- Air Discharge located on the top right or left side of the cabinet
- Ducting of air is not necessary, but comes complete with 4" adapter port
- Leveling must be adjusted to installation surface
High Volume Stainless Steel Respirator Dryer
| Power Cord | 8 ft. |
| Plug | NEMA L6-30P 15 Amp Twist-Lock |
| Power Supply | 240 Volts, 50/60 Hz, 19 Amp, 1 phase |
| Connect To | 30 Amp Breaker |
| Capacity Per Cycle | Full-face Masks - 96
Half-face Masks - 192
Baskets - 12 (20" x 20" x 7" [H]) |
| Air Flow | 1200 CFM (Circulated)
200 CFM (Exhausted) |
| Heater Kw | 3000 Watts |
| Height | 76" |
| Depth | 24.5" |
| Width | 46.5" |
| Weight | 300 lbs. |
| Cycle Time | 1 - 999 minutes (User Selected) |
| Drying Time | 30 to 90 minutes*
1 hour (Typical) |
| Temperature | User Adjustable
140°F (Max) |
| Notes | *Length of drying times depends on
type and amount of equipment, and
the drying temperature selected |
High Volume Stainless Steel Respirator Dryer
