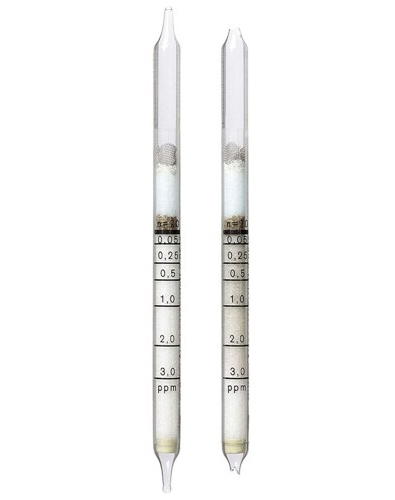

Arsine Detection Tubes 0.05/a (0.05 - 60 ppm)

There are no reviews yet. | Write a review
Item #: CH25001
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
View additional buying options

Arsine Detection Tubes 0.05/a (0.05 - 60 ppm)

Drager Short-term Tubes have proven to be a very cost-effective and reliable method for the measurement of gases.

For short-term measurements more than 160 Drager-Tubes are available to measure the so-called spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Drager-Tube pump accuro or automatically with the Drager X-act 5000.

A wide range of different gases and vapours can be detected and measured, e.g.: Determining and measuring concentration peaks, Measuring personal exposure in the inhalation area, Detecting leaks in pipelines, gas installations etc., and Air analysis in sewers, shafts and confined spaces.

Standard Measuring Range: 0.05 to 3 ppm
Number of Strokes (n): 20
Time for Measurement: approx. 6 min.
Standard Deviation: ±15 to 20 %
Color Change: white ─> grey
Temperature: 0 to 40° C
Absolute Humidity: max. 40 mg H2O / L
Reaction Principle: AsH3 + Au3+ ─> Au (colloidal)
Cross Sensitivity: Phosphine and antimony hydride are indicated as well, but with different sensitivities. Hydrogen sulfide, mercaptans, ammonia and hydrogen chloride in the TLV range do not affect the indication. Carbon monoxide and sulfur dioxides in the TLV range also do not affect the indications.
