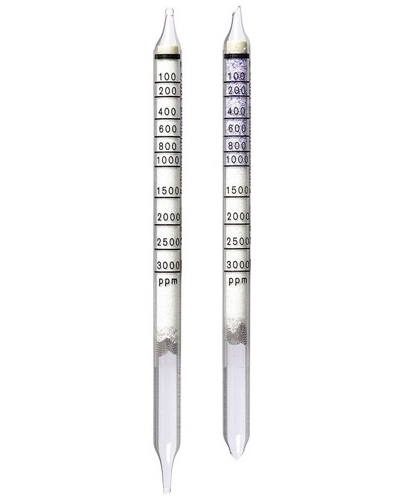

Carbon Dioxide Detection Tubes 100/a (100 - 3000 ppm)

There are no reviews yet. | Write a review
Item #: 8101811
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
$78.50
View additional buying options

Carbon Dioxide Detection Tubes 100/a (100 - 3000 ppm)

For short-term measurements more than 160 Draeger-Tubes are available to measure the so-called spot concentrations of specific gases.

A wide range of different gases and vapours can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces
Standard Measuring Range: 100 to 3,000 ppm
Number of Strokes (n): 10
Time for Measurement: approx. 4 min.
Standard Deviation: ±10 to 15 %
Color Change: white to pale violet or blue violet
Temperature: 15 to 25° C
Absolute Humidity max. 23 mg H2O / L
Reaction Principle: CO2 + N2H4 ─> NH2-NH-COOH
Cross Sensitivity: No influence on the reading by 10 ppm hydrogen sulfide and 2 ppm sulfur dioxide.
