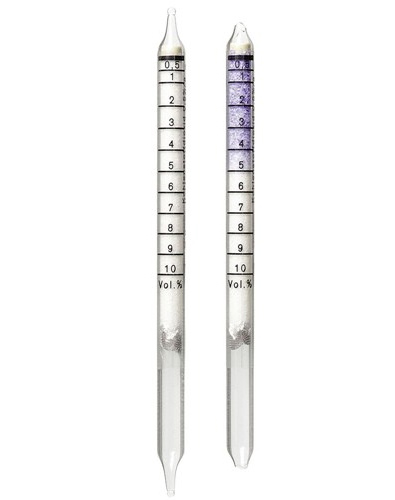

Carbon Dioxide Detection Tubes 0.5%/a (0.5 - 10 Vol%)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces.
Carbon Dioxide Detection Tubes 0.5%/a (0.5 - 10 Vol%)
| Standard Measuring Range: |
0.5 to 10 Vol.-% |
| Number of Strokes (n): |
1 |
| Time for Measurement: |
approx. 30 sec. |
| Standard Deviation: |
±5 to 10 % |
| Color Change: |
white to violet |
| Temperature: |
0 to 40° C |
| Absolute Humidity: |
max. 50 mg H2O / L |
| Reaction Principle: |
CO2 + amine ?> violet reaction product |
| Cross Sensitivity: |
Hydrogen sulfide in the TLV range does not interfere. In a range comparable to the calibrated range for carbon dioxide, sulfur dioxide is indicated. The sulfur dioxide sensitivity is approximately 1/3 (e.g. 3 Vol.% sulfur dioxide gives an indication of 1 Vol.%) |
