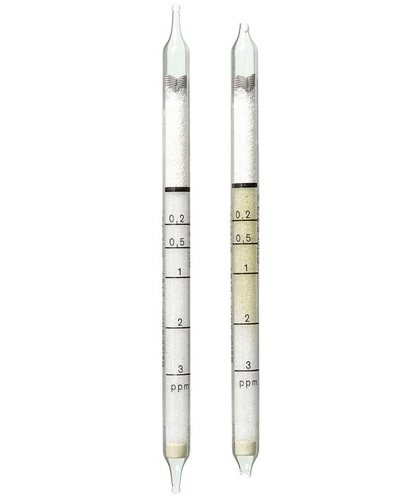

Chlorine Detection Tubes 0.2/a (0.2 - 30 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Chlorine Detection Tubes 0.2/a (0.2 - 30 ppm)
| Standard Measuring Range: |
0.2 to 3 ppm / 3 to 30 ppm |
| Number of Strokes (n): |
10 / 1 |
| Time for Measurement: |
approx. 3 min / 20 sec |
| Standard Deviation: |
±10 to 15 % |
| Color Change: |
white ?> yellow orange |
| Temperature: |
0 to 40° C |
| Absolute Humidity: |
< 15 mg H2O / L |
| Reaction Principle: |
Cl2 + o-tolidine ??> yellow orange reaction product |
| Cross Sensitivity: |
Bromine is indicated with the same sensitivity, but with a paler discoloration. Chlorine dioxide is indicated with different sensitivity.
Nitrogen dioxide is indicated as well, but with a paler discoloration and lower sensitivity. |
