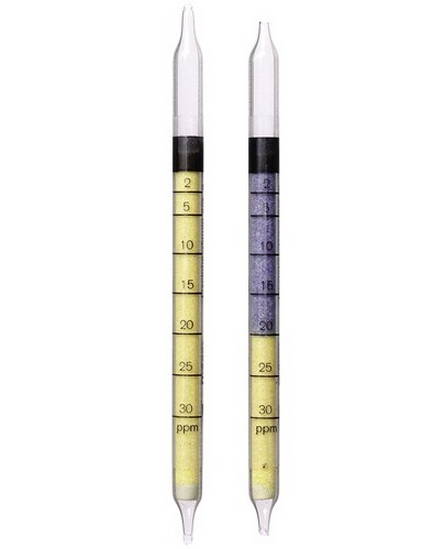

Cyclohexylamine Detection Tubes 2/a (2 - 30 ppm)

There are no reviews yet. | Write a review
Item #: 6728931
MFG: Draeger

UOM: Box of 10

View additional buying options

Cyclohexylamine Detection Tubes 2/a (2 - 30 ppm)

For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.

A wide range of different gases and vapours can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces
Standard Measuring Range: 2 to 30 ppm
Number of Strokes (n): 10
Time for Measurement: approx. 4 min
Standard Deviation: ±15 to 20 %
Color Change: yellow ─> blue
Temperature: 15 to 35° C
Absolute Humidity: 3 to 15 mg H2O / L
Reaction Principle: C6H11NH2 + pH-indicator ──>
blue reaction product
Cross Sensitivity: Other basic substance such as organic amines and ammonia are indicated as well.
