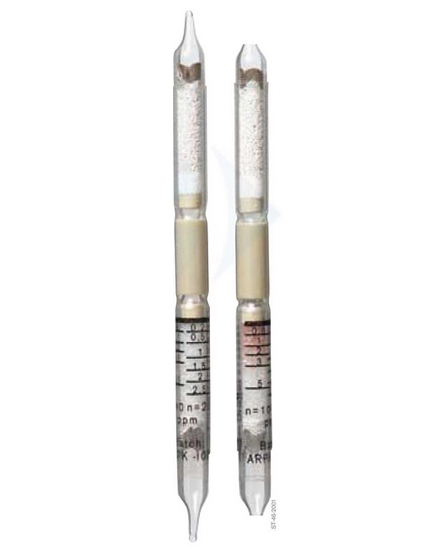

Formaldehyde Detection Tubes 0.2/a (0.2 - 5 ppm)

There are no reviews yet. | Write a review
Item #: 6733081
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
$105.00
View additional buying options
Product Details

Formaldehyde Detection Tubes 0.2/a (0.2 - 5 ppm)

For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.

A wide range of different gases and vapours can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces

Formaldehyde Detection Tubes 0.2/a (0.2 - 5 ppm)

Standard Measuring Range: 0.5 to 5 / 0.2 to 2.5 ppm
Number of Strokes (n): 10 / 20
Time for Measurement: approx. 1.5 min. / approx. 3 min.
Standard Deviation: �20 to 30 %
Color Change: white ?> pink
Temperature: 10 to 40� C
Absolute Humidity: 3 to 15 mg / L
Reaction Principle: HCHO + C6H4(CH3)2 + H2SO4 ??>
quinoid reaction products
Cross Sensitivity: Styrene, vinyl acetate, acetaldehyde, acrolein, diesel fuel and furfuryl alcohol are indicated with a yellowish brown discoloration. 500 ppm octane, 5 ppm nitric oxide and 5 ppm nitrogen dioxide have no effect.
Extension of the Measuring Range: The measuring range can be extended in conjunction with the activation tube (Order No. 81 01 141). The following information applies to the n = 20 stroke scale:
Pump Strokes Scale Divided By Range
40 2 0.1 to 1.25 ppm
80 40 0.05 to 0.63 ppm
100 5 0.04 to 0.5 ppm

Formaldehyde Detection Tubes 0.2/a (0.2 - 5 ppm)
