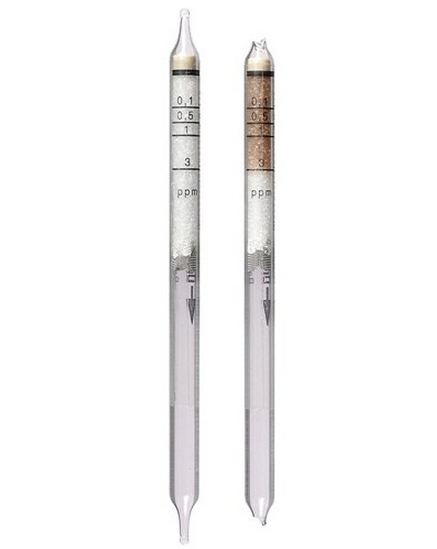

Hydrogen Peroxide Detection Tubes 0.1/a (0.1 - 3 ppm)

There are no reviews yet. | Write a review
Item #: 8101041
MFG: Draeger

UOM: Box of 10

$110.00
View additional buying options

Hydrogen Peroxide Detection Tubes 0.1/a (0.1 - 3 ppm)

For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.

A wide range of different gases and vapors can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces.
Standard Measuring Range: 0.1 to 3 ppm / 1 ppm
Number of Strokes (n): 20 / 2
Time for Measurement: approx. 3 min / approx. 18 sec
Standard Deviation: ±10 to 15%
Color Change: white ─> brown
Temperature: 10 to 25° C
Absolute Humidity: 3 to 10 mg H2O / L
Reaction Principle: 2 H2O2 + 2 Kl ──> I2 + 2 H2O + O2
Cross Sensitivity: It is impossible to measure hydrogen peroxide in the presence of chlorine or nitrogen dioxide. Only hydrogen peroxide vapor is indicated, not the aerosols.
