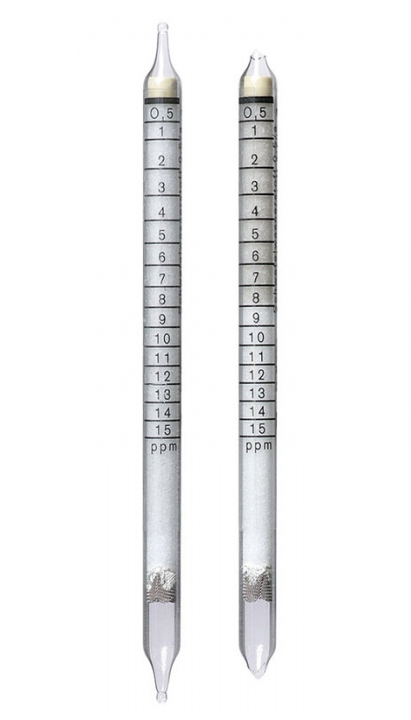

Hydrogen Sulfide Detection Tubes 0.5/a (0.5 - 150 ppm)

There are no reviews yet. | Write a review
Item #: 6728041
MFG: Draeger

UOM: Box of 10

$80.70
View additional buying options

Hydrogen Sulfide Detection Tubes 0.5/a (0.5 - 150 ppm)

For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.

A wide range of different gases and vapors can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc., and Air analysis in sewers, shafts and confined spaces
Standard Measuring Range: 0.5 to 15 ppm
Number of strokes n: 10
Time for Measurement: approx. 6 min
Standard Deviation: ± 5 to 10 %
Color Change: white ──> pale brown
Temperature: 0 to 40°C
Absolute Humidity: 3 to 30 mg H2O / L
Reaction Principle: H2S + Hg2+ ──> HgS + 2 H+
Cross Sensitivity: No interference by:
  • 100 ppm sulfur dioxide
  • 100 ppm hydrochloric acid
  • 100 ppm ethyl mercaptan
