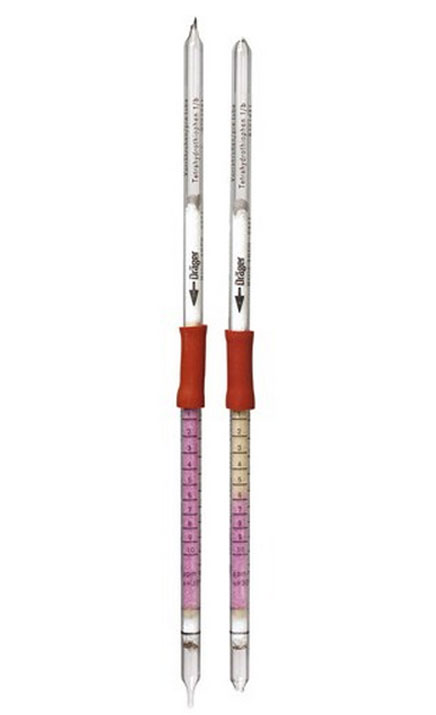

Tetrahydrothiophene Detection Tubes 1/b (1 - 10 ppm)

There are no reviews yet. | Write a review
Item #: 8101341
MFG: Draeger

UOM: Box of 10

View additional buying options

Tetrahydrothiophene Detection Tubes 1/b (1 - 10 ppm)

For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.

A wide range of different gases and vapors can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces
Standard Measuring Range: 1 to 10 ppm / 4 to 40 mg/m3
Number of strokes n: 30
Time for Measurement: in air: approx. 15 min
in natrual gas: approx. 10 min
Standard Deviation: ± 15 to 20 %
Color Change: violet ──> yellow brown
Temperature: 0 to 35 °C
Absolute Humidity: < 30 mg H2O / L
Reaction Principle: THT + KMnO4 ──> yellow brown reaction product
Cross Sensitivity: Up to 10 ppm hydrogen sulfide is adsorbed in the pretube, causing a brown discoloration. It is impossible to measure tetrahydrothiophene in the presence of mercaptans. Up to 100 ppm of olefines (e. g. ethene, propene) will cause the color of the indicating layer to become lighter, at higher concentrations the olefins are also indicated. Up to 200 ppm methanol does not interfere.
Extension of Measuring Range: 1.6 to 16 ppm / 6.4 to 64 mg/m3
n = 20 multiply the reading by 1.6
