Toluene Detection Tubes 100/a (100 - 1800 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces

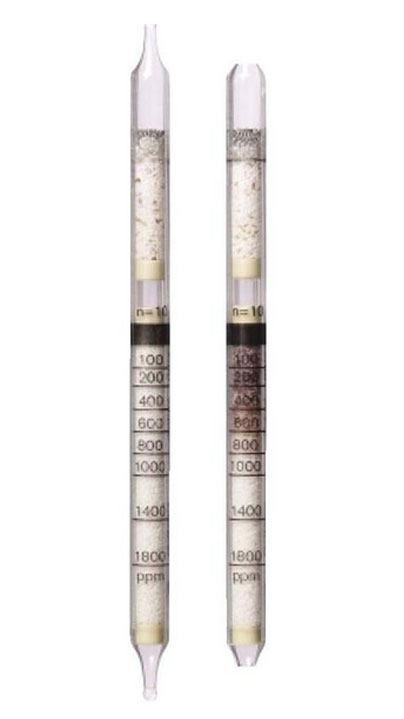

Toluene Detection Tubes 100/a (100 - 1800 ppm)
| Standard Measuring Range: |
100 to 1,800 ppm |
| Number of strokes n: |
10 |
| Time for Measurement: |
approx. 1.5 min |
| Standard Deviation: |
± 10 to 15 % |
| Color Change: |
white ??> brown violet |
| Temperature: |
0 to 40 °C |
| Absolute Humidity: |
< 30 mg H2O / L |
| Reaction Principle: |
Toluene + SeO2 + H2SO4 ??> brown violet reaction product |
| Cross Sensitivity: |
Xylenes are indicated with approximately the same sensitivity, but with a bluish violet color.
Benzene discolors the entire indicating layer a diffuse yellow brown.
Petroleum hydrocarbons discolor the entire indicating layer a diffuse reddish brown.
Methanol, ethanol, acetone and ethyl acetate do not interfere in the range of their TLVs. |
Toluene Detection Tubes 100/a (100 - 1800 ppm)
