UCF 9000 Thermal Imaging Camera

There are no reviews yet. | Write a review
Item #: UCF-9000
MFG: Draeger
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
Kit Option:
Update price
View additional buying options
Product Details

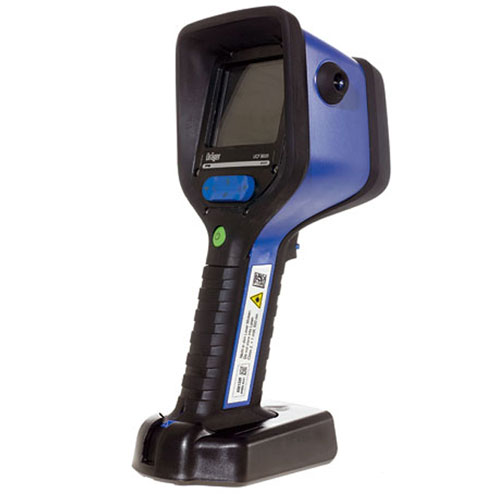

UCF 9000 Thermal Imaging Camera

The UCF 9000 packs wide ranging functionality into a lightweight device optimized for one-handed operation. The compact design of the UCF 9000 allows users to select all functions with just a thumb or index finger, and with the camera's robust plate support, users can crawl on all fours without losing their grip.

The UCF 9000 offers 44% more detail than other firefighting thermal imaging cameras and offers a wider field of view as well as two zoom options (2x and 4x). The camera is capable of capturing both thermal images and real images, and it allows the user to set temperature thresholds for each, making identifying hotspots quicker and easier.

Extended features include a laser pointer for marking heat sources or displaying the fill levels of tanks, a snapshot function for taking freeze frames that help users "peek" around corners, an extended dynamic range for clearly detecting people and objects, even near fires and quick shutter capacity for ensuring a clear view at all times.

The UCF 9000 offers 8 image modes in addition to the standard thermal mode including: Fire (firefighting), Persons (search and rescue), Thermal Scan (searching for persons outside), Hazardous Goods (leak detection and level indicators), Scan PLUS (searching for heat sources in real images), Normal image (video camera), and Customizable color palette (choose from 5 different modes).


  • UL approved intrinsically safe, Class 1, Division 2
  • Thermal image recording and video recording
  • 8 operation modes to enhance the detail during specific applications
  • 384 x 288 pixel resolution for 44% more detailed high quality images, even in poor visibility
  • 57° horizontal field of view - 10° more than the UCF 7000
  • Scan Plus that combines real images and thermal images for enhanced detail
  • 2x and 4x zoom - one more zoom option than the UCF 7000
  • Has 180° flip screen for proper visual orientation and docking on left or right

UCF 9000 Thermal Imaging Camera

Dimensions: 125 x 280 x 110 mm
Display Technology: Liquid crystal display (LCD)
Display Size: (diagonal) 9 cm (3.5")
Protection class: IP 67
Application modes: Standard, Fire, Persons, Thermal Scan, Outdoors, Hazardous Goods, Scan PLUS, Normal Image, User Defined
Weight: 3 lbs. including battery
Infrared-specs: Type of Sensor: a-Si Microbolometer Array
Resolution: 384 x 288 pixel
IR spectral: 7 to 14 μm
Temp. sensitivity: typically 0.035° C
Picture frequency: 50 Hz
Optics: Focus: from 1 m to infinity
Field of view: Horizontal - 57° / Vertical - 41° / Diagonal 74°
Operation time: w/ battery - typically 4 hours
w/ alkaline power pack - typically 2 hours
Temperature measurement: Digital temperature display: -40°C ... 1,000°C
Battery technology: Rechargeable lithium ion batteries
Battery display: Precise 4-level battery indicator
Approvals: Meets the following explosion protection regulations: Class I, Div. 2, Groups A,B,C,D, Class I, Zone 1, Ex ib IIC T4

UCF 9000 Thermal Imaging Camera

Truck Kit (P/N 4059444) Includes:

  • UCF 9000 Standard Kit
      • CF 9000 Camera
      • Desktop Charger
      • Charging Cords,
      • IFU
      • Software disc
      • Crawling Plate
  • Truck Mount
  • Retractable Lanyard

Pelican Case Kit (P/N 4059453) Includes:

  • UCF 9000 Standard Kit
  • Pelican Case
