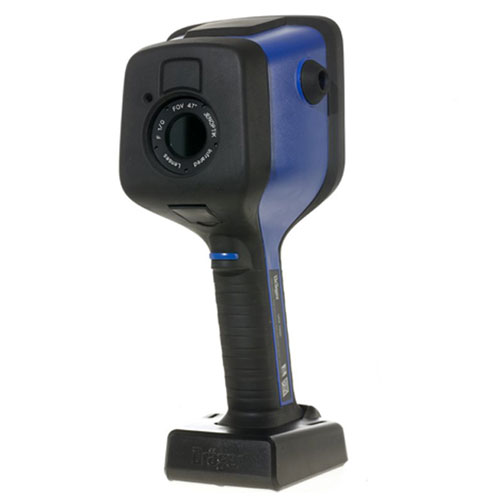

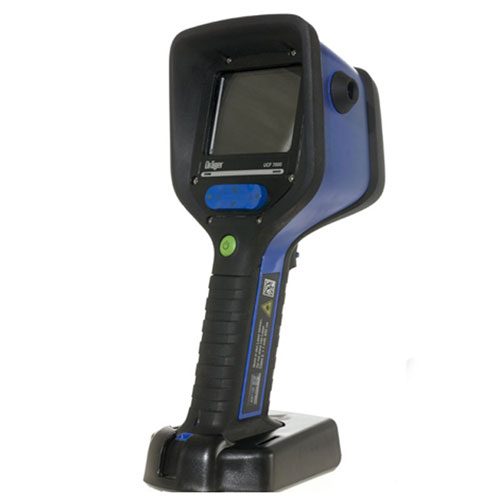

UCF 7000 Thermal Imaging Camera

There are no reviews yet. | Write a review
Item #: 8327041
MFG: Draeger
UOM: Each
Min Order: 0
Order Qty: Must order in multiples of 1
View additional buying options
Product Details

UCF 7000 Thermal Imaging Camera

The Draeger UCF 7000 thermal imaging camera is intrinsically safe (UL Class 1, Division 2) and offers new levels of security and reliability in potentially hazardous settings. Technologically advanced yet easy to use with one hand, the UCF 7000 provides first responders peace of mind with rapid accurate and clear imaging in any hazardous situation.

The UCF 7000 is a high performance thermal imaging camera that is rugged, innovative and easy to use. The resolution of 160 x 120 pixels and 2 x zoom provides detailed images in any setting, allowing rooms, hallways and other areas immediate vicinity to be searched quickly and safely. With the "application mode" (application specific operating modes), the UCF 7000 makes it possible to optimize the image display for the specific task at hand.

Optimized image processing provides a quick overview in just seconds. The "snapshot" function provides a temporary freeze frame thermal image which can then be viewed on the display. This feature makes it possible to "see around corners" when the freedom of movement of field of view are limited and allows users to assess particularly difficult areas quickly and safely.

The integrated laser pointer promotes safety and aids communication by allowing users to point out the location of hot spots and other hazards and define the path of attack for other team members.


  • Detailed images provided by 160 x 120 pixels resolution and 2X zoom allow faster decision making
  • UL Class 1 Division 2 design is intrinsically safe
  • Application modes allow the user to enhance the camera's sensitivity to any area of interest
  • Brightness sensor adapts the display to all lighting conditions
  • Integrated laser pointer pinpoints hazards and aids communications
  • Snapshot function allows freeze frame imaging to difficult areas
  • Lightweight and ergonomic design helps minimize fatigue
  • ThermalScan feature highlights images at set temperature thresholds for easier hotspot identification
  • Integrated video and sound recording supports safety training and more

UCF 7000 Thermal Imaging Camera

Dimensions of camera
(B x H x T):
125 x 260 x 110 mm
Display Technology: Liquid crystal display (LCD)
Display Size (diagonal): 9 cm (3.5")
Protection class: IP 67
Infrared-specs: Type of Sensor: a-Si Microbolometer Array
Resolution: 160 x 120 pixel
IR spectral: 7 to 14 ?m
Temp. sensitivity: typically 0.035� C
Picture frequency: 50 Hz
Optics: Focus: from 1 m to infinity
Field of view: Horizontal - 47� / Vertical - 32� /
Diagonal 62�
Operation time
(at 23�C):
w/ battery - typically 4 hours
Temperature measurement: Digital temperature display: -40�C ... 1,000�C
Battery technology: Rechargeable li-ion batteries
Battery display: Precise 4-level battery indicator
Approvals: Meets the following explosion protection

Class I, Div. 2, Groups A,B,C,D, Class I, Zone 1,
Ex ib IIC T4

UCF 7000 Thermal Imaging Camera

System Includes:

  • UCF 7000 Camera
  • Desktop charger
  • Charging cords
  • IFU
  • Software disc
  • Crawling plate
