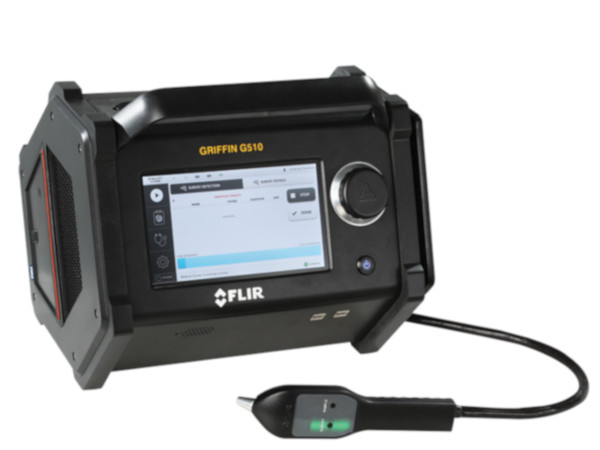

Griffin G510 Person-Portable GC-MS Chemical Identifier

The Griffin G510 is a portable gas chromatograph mass spectrometer (GC-MS). It complements presumptive detectors used during emergency missions, by enabling responders to analyze all phases of matter (liquid, solid, vapor) so they can take immediate action. The G510 features a large touchscreen with automated user controls, can be operated while wearing full PPE, and is built with an IP65-rated enclosure for harsh environments.

Features:

  • Lab, gold-standard linear quadrupole mass analyzer
  • Full NIST chemical library for field identification and analysis of unknown materials and mixtures
  • Simple on-board touchscreen with automated user controls
  • Visual and audible alarm confirmation with limited data interpretation
  • On-board WiFi and GPS assist in maintaining result defensibility
  • Vapor sampling probe with rapid-response survey mode
  • Integrated split/splitless liquid injector accepts direct injection of organic liquids
  • High-fidelity, low thermal mass (LTM) GC column for unsurpassed resolution in challenging environments
  • IP65-rated, dust-tight and spray-resistant
  • Built-in active pumping system eliminates need for an external service module
  • Simple field maintenance activities for increased uptime
  • Extensive training, service, and support options available
Data Storage: Internal 256GB SSD
Decontamination: Sealed for Survey Mode operation in hot-zone; IP65-rated enclosure is dust-tight and spray-resistant
Training Requirements: 2 hours basic operation; 8 hours expert user
Operating Temp & Humidity: 32 to 104 °F (0 to 40 °C); <95% relative humidity
Storage Temperature: -13 to 131 °F (-25 to 55 °C)
Dimensions (L x W x H): 13.25 x 13.25 x 15.75 in (33.7 x 33.7 x 40 cm) - includes batteries, carrier gas, and vacuum system
Weight: 36 lbs (16.3 kg) - includes batteries, carrier gas, and vacuum system
Battery life: 4 hrs in Survey Mode, 2 hrs in Confirmation Mode; hot swappable
Power Supply: 100-240V 50-60Hz (220 W max); 19V (DC); 2 x #2590 @15V Li Ion batteries (included)
Start Up Time: 15 minutes to full operation from cold
Sample Introduction: Heated Sample Probe (included standard) - Vapor survey mode via Membrane Introduction Mass Spectrometry (MIMS) Inlet - Vapor confirmation via Internal Dual-Bed Preconcentrator Split/splitless injector (included standard) accepts: - Direct liquid sampling (organic solution) via syringe - Liquid extraction via SPME fiber or PSI-Probe w/ Gerstel Twister™ * - Solid PSI-Probe™ thermal separation via TAG™ * *optional accessories
Sample Phase: Solid, liquid, and vapor
Sampling & Analysis: Full identification in 4-15 mins for most chemicals; identification wthin seconds (near real-time) when operating in Survey Mode
Standard Reference Database: NIST/EPA/NIH Mass Spectral Library
Threats: Detects and identifies explosives, narcotics, CWAs, TICs, environmental pollutants, and other chemicals
Alerts: Audible and Visual (Touchscreen and Handheld Probe)
Communication: 2 x USB 2.0, Bluetooth 4.0, WiFi 802.11n, Ethernet via USB, integrated GPS
Display: 9" Multitouch Color Display (1280x720 WVGA;1300 nits brightness)
Software: GSS Touch; multiple user levels
Calibrant: Onboard FC-43 (Perfluorotributylamine)
Carrier Gas: On-board helium; external helium connector, automatic switching (Hydrogen capable)
Detection Limit: PPM (parts per million) – PPT (parts per trillion)
Detector: Electron Multiplier
Dynamic Range: 7 decades
Ionization Type: Electron Impact Ionization; non-radioactive ionization source
LTM - GC Column: DB-5MS (15 m x .18 mm x 0.25 µm); others available
Mass Analyzer Type: Linear quadrupole mass filter
Mass Range & Resolution: 15-515 m/z; 0.7 amu @ FWHM
Technology: Gas Chromatography/Mass Spectrometry (GC/MS)
Temperature Range: Programmable 40 to 300 °C; ramping of 100 °C/min
Vacuum System: Self-contained miniature turbomolecular & diaphragm pumps

Essentials Kit Includes:

  • (1) Griffin G510 GC/MS with integrated Heated Sample Probe and Liquid Injector
  • (1) AC Power Adapter
  • (2) 2590 Batteries (UBBL13)
  • (2) He Carrier Gas Cartridges
  • (1) Syringe
  • (1) Standard Tool Kit
  • (1) Quick Reference Guide
  • (1) Stylus
  • GSS L1T Software and NIST 2017 Library
  • Regional Training Event (RTE) Certificate

Field Ready Kit Includes:

  • Complete Essentials Kit (contents listed above)
  • (1) Ruggedized Transport Case
  • (1) Shoulder Strap
  • (2) additional 2590 Batteries (UBBL13)
  • (1) External 2-Bay Battery Charger
  • (22) additional He Carrier Gas Cartridges
  • (6) Injector Maintenance Kits
  • 2-Year Annual Service Contract, including two PM Services - one per year, Griffin Reachback support 24 month warranty
  • (1) 1-day On-Site Operator Training.

Service Contract Options:

500EXTWAR12 G510 Annual Service Contract (1 year): includes 1 year extended warranty, Griffin Reachback support, and 1 PM service
500EXTWAR24 G510 Annual Service Contract (2 years): includes 2 years extended warranty, Griffin Reachback support, and 2 PM services – one per year
500EXTWAR36 G510 Annual Service Contract (3 years): includes 3 years extended warranty, Griffin Reachback support, and 3 PM services – one per year
500EXTWAR48 G510 Annual Service Contract (4 years): includes 4 years extended warranty, Griffin Reachback support, and 4 PM services – one per year
500EXTWAR60 G510 Annual Service Contract (5 years): includes 5 years extended warranty, Griffin Reachback support, and 5 PM services – one per year
