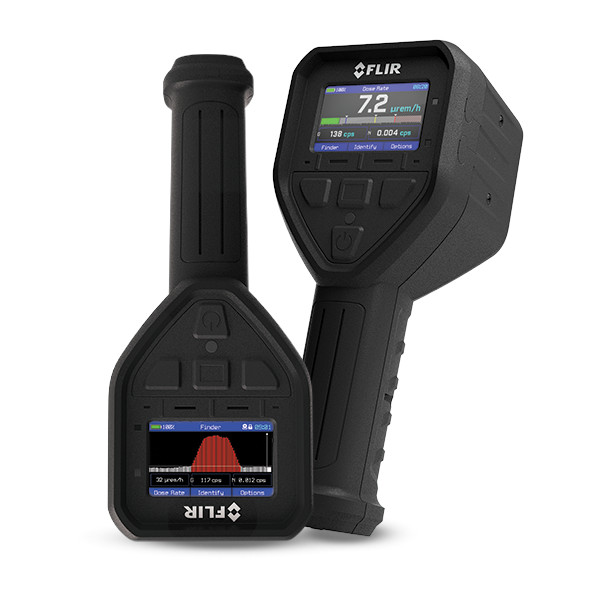

identiFINDER R425 Radionuclide Identification Device
The FLIR identiFINDER R425 is the next generation of the most deployed handheld radionuclide identification device (RID), the Identifinder R400. The radiation detector offers 360-degree coverage so you can locate and measure radioactive sources with confidence.
Built on FLIR’s trusted algorithms with advanced heuristics and hybrid identification techniques, the R425 maintains the familiar identiFINDER user interface and 3-button control.
When other systems fail in extremely high gamma fields, the FLIR identiFINDER R425 provides pinpoint accuracy and remains fully operational. The identiFINDER R425 has a balanced design, unparalleled ruggedness, flexible power management, and intuitive interface allow the detector to be operated quickly and effectively.
The R425 provides a balance of size, weight, and performance for the detection of radiation in a variety of missions including surveying, emergency response, and environmental monitoring.
FEATURES & BENEFITS:
- New cubic detector design allows for high performance in all directions
- 3x more sensitive gamma detection (G); 2x more sensitive neutron detection (GN)
- Advanced heuristics and hybrid identification
techniques
- Sourceless stabilization
- 15% lighter weight than previous generation
- Internal battery lasts up to 12 hrs; additional power options include disposable or rechargeable batteries that are hot swappable and user-replaceable
- Ready in ≤20 seconds from cold start
- Fully enclosed solid-state detector
- IP67-rated
- Balanced, ergonomic design
- Sunlight readable screen; visible through polarized glasses
- Established FLIR GUI and 3-button control
- Remote data viewing, operation, and reach back
- Dual USB-C ports and FLIR’s trusted web interface
- FLIR RAD Mobile App
- Universal API enables integration with user deployed networks (Mobile Field Kit, ATAK, Sigma Edge, Safe Environment Gateway, etc.)
- Built-in Bluetooth and GPS
identiFINDER R425 Radionuclide Identification Device
| SYSTEM OVERVIEW |
| Technology |
Radionuclide identification device (RID); Gamma and Gamma/Neutron Models |
| Gamma Detector – Nal [TI] |
1.77 x 1.77 x 1.77 in (45 x 45 x 45 mm) cubic detector with silicon photomultiplier (SiPM) |
| Neutron Detector - ZnS (GN model only) |
27 x 58 x 5 mm moderated panels (2 each) |
| Energy Range (Gamma) |
25 keV - 3 MeV |
| Gamma Sensitivity (Cs-137) |
1610 cps/μSv/h |
| Neutron Sensitivity |
> 4 cps/nv |
| Gamma Spectrum Length |
1024 channels |
| Dose Rate Range (Cs-137) |
10 µrem/h – 100 mrem/h ±10%, 100 nSv/h – 1 mSv/h ±10% |
| Dose Rate Range ID Mode (Cs-137) |
0 nSv/h - 50 uSv/h |
| Overload Dose Rate Range |
100 mrem/h – 1 rem/h, 1 mSv/h – 10 mSv/h |
| Stabilization |
Sourceless gain stabilization |
| Linearization |
Real time linearization of gamma energy |
| Typical Resolution |
≤ 7% FWHM at 662 keV (20˚C) |
| Service Interval |
5-year factory maintenance |
| SAMPLING & ANALYSIS |
| Sample Introduction |
Absorption of EM gamma and neutron emissions |
| Threats |
Detects neutron and gamma radiation emitted from natural occurrences in the environment, special nuclear material, industrial, or medical material |
| Nuclide Identification |
According to ANSI N42.34 |
| Library Categories |
SNM, IND, MED, NORM |
| Time to Identification |
From a few seconds to a few minutes |
| SYSTEM INTERFACE |
| Display & Alerts |
2.7” diagonal (400x240 pixels) screen; sunlight readable;
visible through polarized glasses |
| Communication |
USB-C (2x), Bluetooth (BLE 5.0) |
| Data Storage |
8GB internal memory |
| Training Requirements |
<10 mins for operator; 1 hour for advanced user |
| Software |
Onboard webserver software |
| Data File Format |
According to ANSI N42.42 |
| POWER |
| Input Voltage |
100-240 AC (wall adapter and USB-C cable supplied) |
| Battery Specs |
Internal Li-ion cells; additional user-selectable external battery (1 each 16650 Li-ion or 2 each CR123); hot-swappable |
| Cold Start Time |
≤20 seconds from cold start |
| PHYSICAL FEATURES |
| Dimensions (L x W x H) |
9.3 x 3.9 x 3.7 in (235 x 100 x 95 mm) |
| Weight |
≤2.6 lbs (≤1.2 kg) |
| Enclosure & Protection |
Injection molded housing with overmold; rating IP67 according to IEC 60529 |
