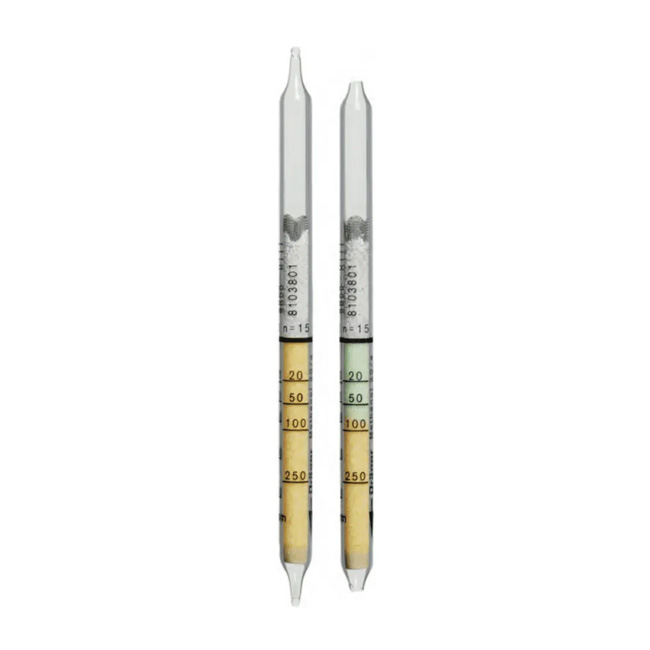

Methanol Detection Tubes 20/a (20-5000 ppm)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Methanol Detection Tubes 20/a (20-5000 ppm)
| Standard Measuring Range: |
20 to 250 ppm / 200 to 5000 ppm |
| Number of Strokes (n): |
15 / 5 |
| Time for Measurement: |
approx. 6 min / approx. 2 min |
| Standard Deviation: |
� 10 to 25 % |
| Color Change: |
yellow ? mint green |
| Temperature: |
15 to 30� C |
| Reaction Principle: |
Methanol + organometallic compound? green reaction product |
| Cross Sensitivity: |
The tube does not differentiate between different alcohols. Higher molecular alcohols are indicated with significantly decreasing sensitivity. Ethers and xylene are indicated as well, but with different sensitivity. ? 25 ppm formaldehyde, ? 50 ppm acetaldehyde, and ? 50 ppm toluene are not indicated. Aliphatic petroleum hydrocarbons, ketones, esters, halogenated hydrocarbons and benzene are not indicated |
