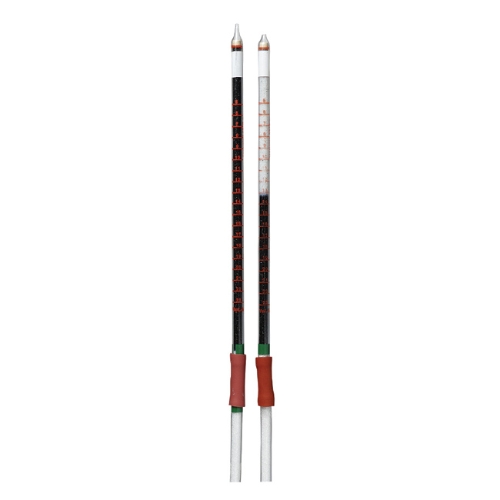

Oxygen Detection Tubes 5%/b (5-23%)
The Draeger Tube Oxygen 5%/b 6728081 has a measurement range of 5 � 23 Vol.%.
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Additional Information: These tubes become very warm during measurement, reaching temperatures of approximately 100 �C. Therefore these tubes should not be used in potentially combustible atmospheres. If in doubt, test the area before using the tube with a combustible gas monitor, before using the tube.
Oxygen Detection Tubes 5%/b (5-23%)
|
Standard Measuring Range:
|
5 to 23 vol. %
|
|
Number of Strokes (n):
|
1
|
|
Time for Measurement:
|
approx. 1 min
|
|
Standard Deviation:
|
�5 to 10 %
|
|
Color Change:
|
blue black ? white
|
|
Temperature:
|
0 to 50� C
|
|
Absolute Humidity:
|
3 to 20 mg/L
|
|
Reaction Principle:
|
a) O2 + TiCI3 TiIV-compound + HCl
b) Adsorption of HCl by silica gel
|
|
Cross Sensitivity:
|
Carbon dioxide, carbon monoxide, solvent vapors, halogenated hydrocarbons and N2O do not affect the indication.
|
