Ammonia Detection Tubes 0.25/a (0.25 - 3 ppm)

There are no reviews yet. | Write a review
Item #: 8101711
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
$94.80
View additional buying options

Ammonia Detection Tubes 0.25/a (0.25 - 3 ppm)

Drager Short-term Tubes have proven to be a very cost-effective and reliable method for the measurement of gases.

For short-term measurements more than 160 Drager-Tubes are available to measure the so-called spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Drager-Tube pump accuro or automatically with the Drager X-act 5000.

A wide range of different gases and vapours can be detected and measured, e.g.: Determining and measuring concentration peaks, Measuring personal exposure in the inhalation area, Detecting leaks in pipelines, gas installations etc., and Air analysis in sewers, shafts and confined spaces.

Standard Measuring Range: 0.25 to 3 ppm
Number of Strokes (n): 10
Time for Measurement: approx. 1 min.
Standard Deviation: ±10 to 15 %

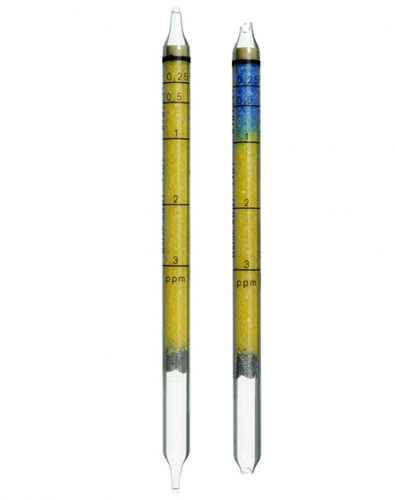

Color Change: yellow ─> blue
Temperature: 10 to 50° C
Absolute Humidity: < 20 mg H2O / L
Reaction Principle: NH3 + pH Indicator ─> blue reaction product
Cross Sensitivity: Other basic substances as e.g. organic
amines are indicated as well, but with
different sensitivity.
