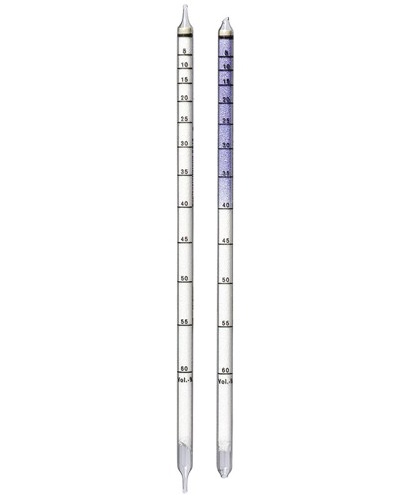

Carbon Dioxide Detection Tubes 5%/A (5 - 60 Vol%)

There are no reviews yet. | Write a review
Item #: CH20301
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
$110.00
View additional buying options

Carbon Dioxide Detection Tubes 5%/A (5 - 60 Vol%)

For short term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.

A wide range of different gases and vapours can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces.
Standard Measuring Range: 5 to 60 Vol. %
Number of Strokes (n): 1
Time for Measurement: approx. 2 min.
Standard Deviation: ± 10 to 15 %
Color Change: white ─> violet
Temperature: 0 to 40° C
Absolute Humidity: max. 50 mg H2O / L
Reaction Principle: CO2 + N2H4─> NH2-NH-COOH
Cross Sensitivity: Hydrogen sulphide is not indicated near the limit value. Sulfur dioxide is indicated with approx. half sensitivity
