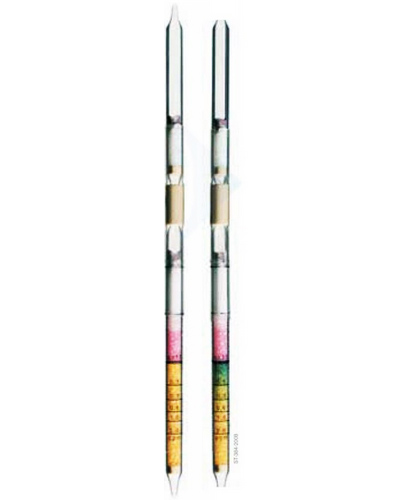

Chloropicrin Detection Tubes 0.1/a (0.1 - 2 ppm)

There are no reviews yet. | Write a review
Item #: 8103421
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
$157.00
View additional buying options

Chloropicrin Detection Tubes 0.1/a (0.1 - 2 ppm)

For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.

A wide range of different gases and vapors can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces
Standard Measuring Range: 0.1 to 2 ppm
Number of Strokes (n): 15
Time for Measurement: approx. 7.5 min
Standard Deviation: ±20 to 30 %
Color Change: yellow ─> blue green
Temperature: 0 to 40° C
Absolute Humidity: 1 to 20 mg H2O / L
Reaction Principle: CCl3NO2 + H2S2O7 ──> COCL2

COCl2 + diethylaniline + dimethylaminobenzaldehyde ──> bluish-green reaction product
Cross Sensitivity The indication is not affected by:
  • 50 ppm ammonia
  • 10 ppm hydrocyanic acid
  • 1 ppm ethylene oxide
  • 1 ppm phosphine
  • 5 ppm methyl bromide
  • 15 ppm sulfuryl fluoride
  • 10 ppm formaldehyde
  • 10 ppm chloroform
