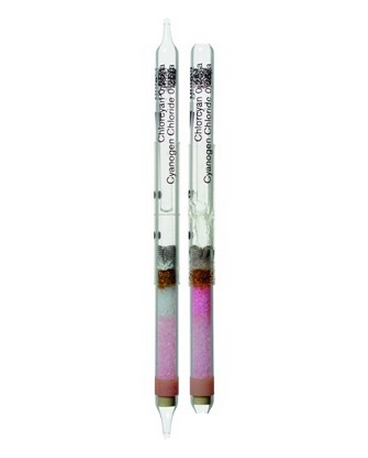

Cyanogen Chloride Detection Tubes 0.25/a (0.25 - 5 ppm)

There are no reviews yet. | Write a review
Item #: CH19801
MFG: Draeger

UOM: Box of 10

$110.00
View additional buying options

Cyanogen Chloride Detection Tubes 0.25/a (0.25 - 5 ppm)

For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.

A wide range of different gases and vapours can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces
Standard Measuring Range: 0.25 to 5 ppm
Number of Strokes (n): 20 to 1
Time for Measurement: max. 5 min
Standard Deviation: ±30 %
Color Change: white ─> pink
Temperature: 5 to 40° C
Absolute Humidity: < 50 mg H2O / L
Reaction Principle: a) CICN + pyridine ──> glutaconaldehyde cyanamide
b) Glutaconaldehyde + barbituric acid ──> pink reaction product
Cross Sensitivity: Cyanogen bromide is indicated as well, but with a different sensitivity. Calibration data is not available.
Additional Information: Before performing the measurement, the reagent ampoule must be broken and the liquid transferred onto the indicating layer so that it is completely saturated.
