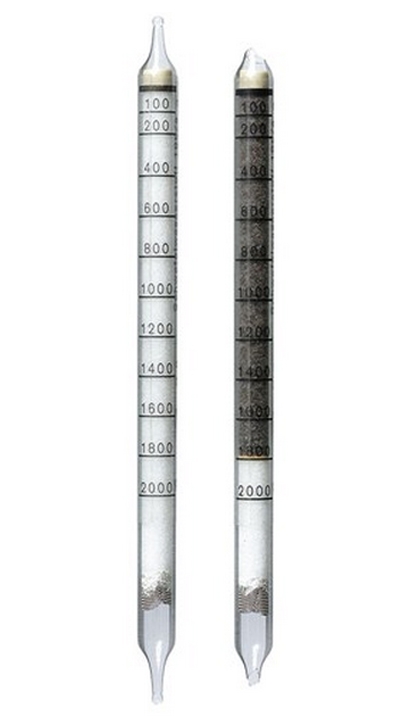

Hydrogen Sulfide Detection Tubes 100/a (100 - 2000 ppm)

There are no reviews yet. | Write a review
Item #: CH29101
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
$93.00
View additional buying options
Product Details

Hydrogen Sulfide Detection Tubes 100/a (100 - 2000 ppm)

For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.

A wide range of different gases and vapors can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces

Hydrogen Sulfide Detection Tubes 100/a (100 - 2000 ppm)

Standard Measuring Range: 100 to 2,000 ppm
Number of strokes n: 1
Time for Measurement: approx. 30 sec
Standard Deviation: ± 5 to 10 %
Color Change: white ??> brown
Temperature: 0 to 40°C
Absolute Humidity: 3 to 40 mg H2O / L
Reaction Principle: H2S + Pb2+ ??> PbS + 2 H+
Cross Sensitivity: No interference by:

2,000 ppm sulfur dioxide
100 ppm nitrogen dioxide

Hydrogen Sulfide Detection Tubes 100/a (100 - 2000 ppm)
