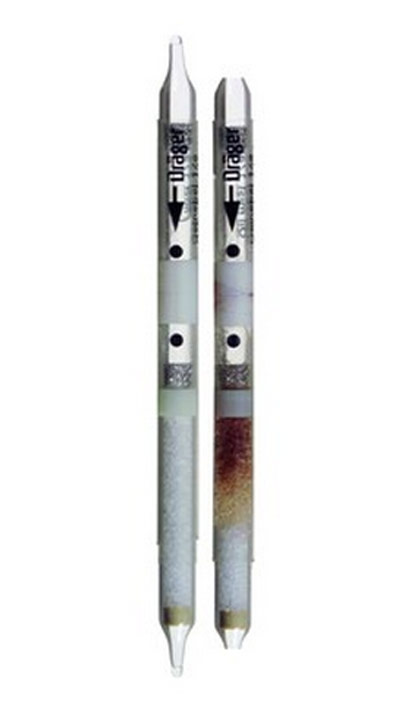

Oil Mist Detection Tubes 1/a (1 - 10 mg/m3)
For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
|Standard Measuring Range:
||1 to 10 mg/m3
Discoloration compared to color standard.
|Number of strokes n:
|Time for Measurement:
||approx. 25 min
||± 30 %
||white ──> brown
||10 to 30 °C
||< 20 mg H2O / L
||Oil mist + H2SO4 ──> brown reaction product
||After performing the required 100 pump strokes the reagent ampoule must be broken and the liquid carefully drawn onto the indication layer using the pump.
