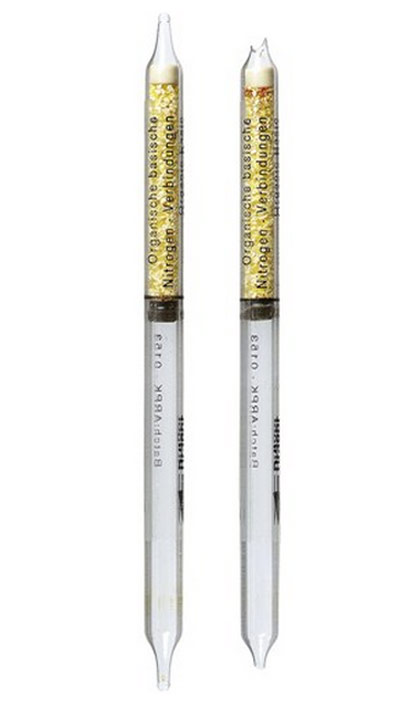

Organic Basic Nitrogen Compounds Detection Tubes (1 mg/m3)

There are no reviews yet. | Write a review
Item #: CH25903
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
$112.00
View additional buying options
Product Details

Organic Basic Nitrogen Compounds Detection Tubes (1 mg/m3)

For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.

A wide range of different gases and vapors can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces

Organic Basic Nitrogen Compounds Detection Tubes (1 mg/m3)

Standard Measuring Range: 1 mg/m3 corresponds to a discoloration of 1 to 2 mm in length.
Number of strokes n: 8
Time for Measurement: approx. 1.5 min
Standard Deviation: ± 50 %
Color Change: yellow ??> orange red
Temperature: 0 to 40 °C
Absolute Humidity: < 50 mg H2O / L
Reaction Principle: NR3 + KBiI4 ??> orange red reaction product
Cross Sensitivity: Various organic basic nitrogen compounds are indicated. It is impossible to differentiate between them.

Organic Basic Nitrogen Compounds Detection Tubes (1 mg/m3)
