Pentane Detection Tubes 100/a (100 - 1500 ppm)

There are no reviews yet. | Write a review
Item #: 6724701
MFG: Draeger
UOM: Box of 10
Min Order: 0
Order Qty: Must order in multiples of 1
$105.00
View additional buying options
Product Details

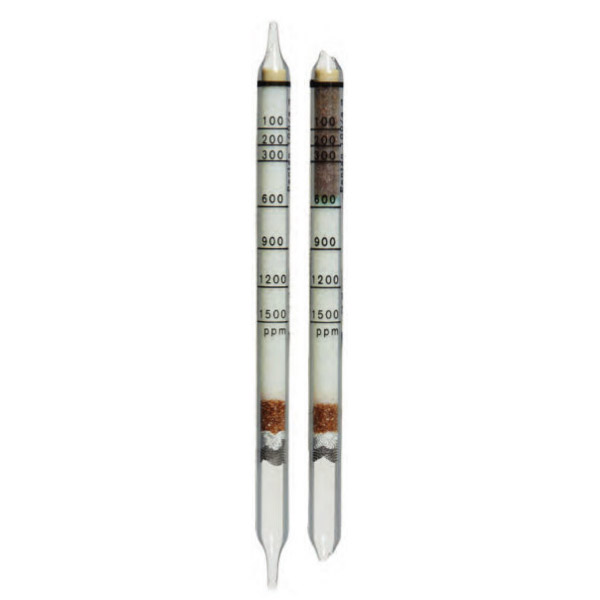

Pentane Detection Tubes 100/a (100 - 1500 ppm)

For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.

A wide range of different gases and vapours can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces

Pentane Detection Tubes 100/a (100 - 1500 ppm)

Standard Measuring Range: 100 to 1,500 ppm
Number of strokes n: 1
Time for Measurement: approx. 15 sec
Standard Deviation: ± 15 to 20 %
Color Change: white ??> brown green
Temperature: 0 to 40 °C
Absolute Humidity: 1 to 40 mg H2O / L
Reaction Principle: C5H12 + I2O5 ??> I2
Cross Sensitivity: Alcohols, esters, aromatics, petroleum hydrocarbons and ethers are indicated, but with different sensitivities. It is impossible to differentiate between them.
