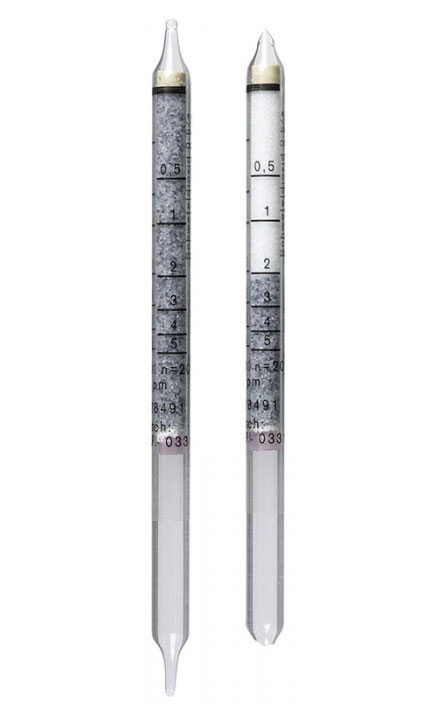

Sulfur Dioxide Detection Tubes 0.5/a (0.5 - 25 ppm)
For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
|Standard Measuring Range:
||1 to 25 ppm / 0.5 to 1 ppm
|Number of strokes n:
||10 / 20
|Time for Measurement:
||approx. 3 min / approx. 6 min
||± 10 to 15 %
||gray blue ──> white
||15 to 30 °C
||max 20 mg H2O / L
||SO2 + I2 + 2 H2O ──> H2SO4 + 2HI
||Measurement is not possible in the presence of H2S. Nitrogen dioxide will shorten the reading.
