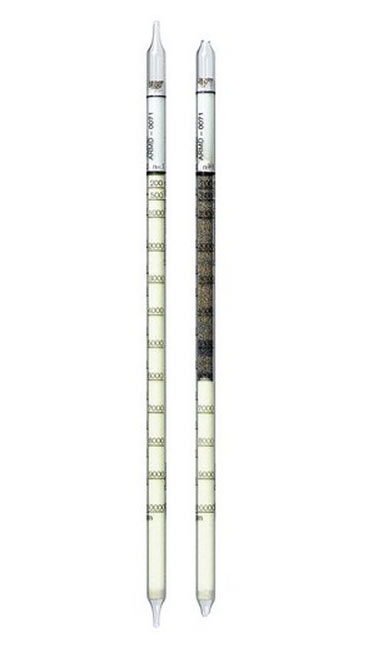

Phosphine Detection Tubes 25/A (25 - 10000 ppm)
For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
|Standard Measuring Range:
||200 to 10,000 ppm / 25 to 900 ppm
|Number of strokes n:
||1 / 10
|Time for Measurement:
||approx. 1.5 min / approx. 10 min
||± 10 to 15 %
||yellow ──> dark brown
||0 to 40 °C
||< 30 mg H2O / L
||PH3 + Au3+ ──> Au (colloidal)
||Arsine and antimony hydride are indicated, but with lower sensitivities.
Hydrogen sulfide, ammonia, hydrochloric acid and mercaptans are retained in the pre-cleanse layer.
