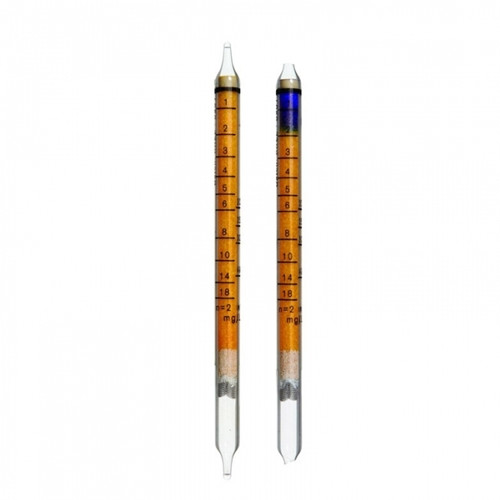

Water Vapor Detection Tubes 3/a (3 - 60 lbs/mmcf)
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used either manually with the Draeger-Tube Accuro Pump or automatically with the Draeger X-act 5000.
A wide range of different gases and vapors can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Water Vapor Detection Tubes 3/a (3 - 60 lbs/mmcf)
| Standard Measuring Range: |
3.0 bis 60 Ibs/mmcf |
| Number of strokes n: |
3 |
| Time for Measurement: |
approx. 9 sec |
| Standard Deviation: |
± 15 to 20 % |
| Color Change: |
yellow ──> blue |
| Temperature: |
0 to 30 °C |
| Reaction Principle: |
H2O + Mg(ClO4)2 ──> blue reaction product |
| Cross Sensitivity: |
No interference with the reading by 1200 ppm NO2, 6000 ppm SO2, 2000 ppm ethanol, 2000 ppm acetone. Basic gases are liable to cause plus errors. Acid gases are liable to cause minus errors. |
Water Vapor Detection Tubes 3/a (3 - 60 lbs/mmcf)
