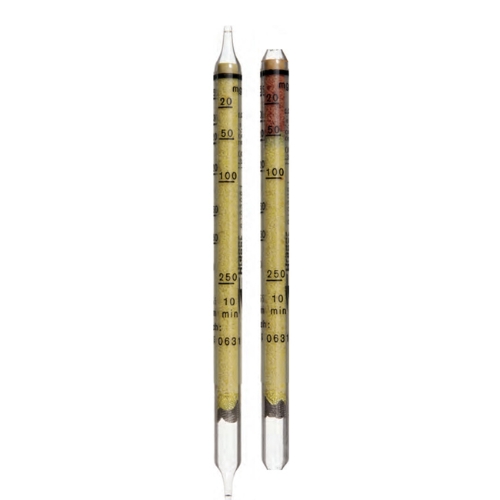

Water Vapor Detection Tubes for Aerotest 20/a-P (20 - 1500 mg H20/m3)
Draeger Short-term Tubes have proven to be a very cost-effective and reliable method for the measurement of gases.
For short-term measurements more than 160 Draeger-Tubes are available to measure the spot concentrations of specific gases. Measurement usually takes between 4 seconds and 15 minutes. The tubes are used with the Draeger-Tube Accuro Pump.
A wide range of different gases and vapours can be detected and measured, such as:
- Determining and measuring concentration peaks
- Measuring personal exposure in the inhalation area
- Detecting leaks in pipelines, gas installations etc.
- Air analysis in sewers, shafts and confined spaces
Water Vapor Detection Tubes for Aerotest 20/a-P (20 - 1500 mg H20/m3)
| Standard Measuring Range: |
20 - 250 / 35 - 500 / 150 - 1500 mg H2O/m3 |
| Test Volume: |
40 L / 20 L |
| Time for Measurement: |
10 min. / 5 min. / 2.5 min |
| Standard Deviation: |
±15 to 20 % |
| Color Change: |
yellow → red-brown |
| Temperature: |
0 to 40° C |
| Pressure: |
Only use the Draeger Water Vapor Detector Tube for depressurized compressed air |
| Reaction Principle: |
H2O + SeO2 + H2SO4 → reddish brown reaction product |
| Cross Sensitivity: |
Alcohols and unsaturated hydrocarbons of high concentrations may cause a diffused discoloration of the indicating layer. |
Water Vapor Detection Tubes for Aerotest 20/a-P (20 - 1500 mg H20/m3)
