Diethyl Ether Detection Tubes 100/a (100 - 4000 ppm)

There are no reviews yet. | Write a review
Item #: 6730501
MFG: Draeger

UOM: Box of 10

$94.80
View additional buying options

Diethyl Ether Detection Tubes 100/a (100 - 4000 ppm)

For short-term measurements more than 160 Draeger Tubes are available to measure the so called spot concentrations of specific gases.

A wide range of different gases and vapors can be detected and measured, such as:

  • Determining and measuring concentration peaks
  • Measuring personal exposure in the inhalation area
  • Detecting leaks in pipelines, gas installations etc.
  • Air analysis in sewers, shafts and confined spaces
Standard Measuring Range: 100 to 4,000 ppm
Number of Strokes (n): 10
Time for Measurement: approx. 3 min
Standard Deviation: ±15 to 20 %

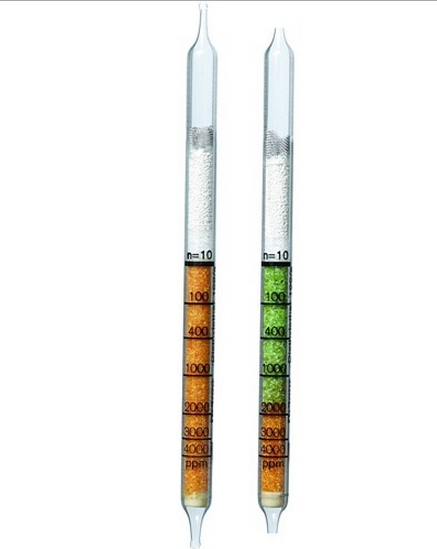

Color Change: orange ─> green brown
Temperature: 15 to 40° C
Absolute Humidity: 3 to 15 mg H2O / L
Reaction Principle: C2H5-O-C2H5 + CrVI ──>
CrIII + various oxidation products
Cross Sensitivity: Many petroleum hydrocarbons, alcohols, aromatics and esters are indicated as well, but with different sensitivities. It is not possible to differentiate between them.
